Key Takeaways
- ESP32-C6 and H2 boards can create a Thread border router for under $5, far cheaper than commercial alternatives
- The Seeed Studio XIAO ESP32-C6 includes Zigbee, Thread, Matter, and Wi-Fi 6 support for $5-12
- Heltec V3 LoRa boards at $27 include everything needed to join Meshtastic networks
Every ESP32 and most ESP8266 boards can communicate peer-to-peer without a centralized router. They support at least one mesh networking protocol, and the newer variants support several. That makes them perfect for smart home sensors, off-grid communication, and low-latency data transfer projects you can actually finish in a weekend.
How-To Geek compiled five ESP32 mesh network builds that range from a $5 Thread border router to LoRa-based Meshtastic setups. Here's what caught our attention.
The $5 Thread border router for Home Assistant

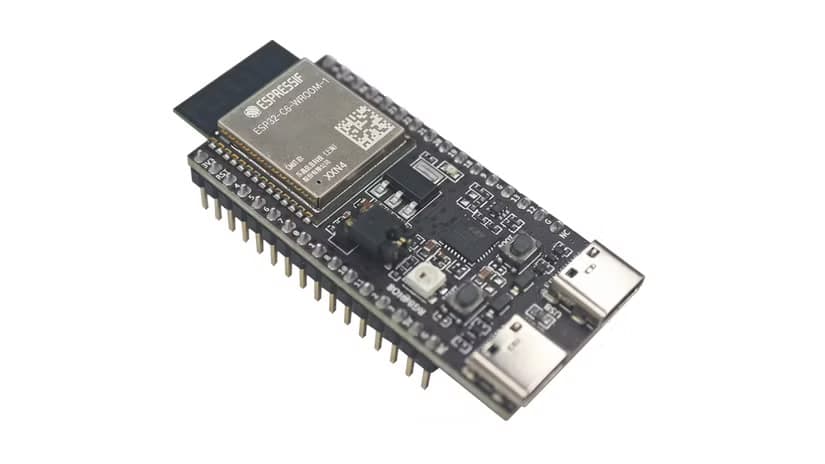

This is probably the most practical project on the list. ESP32-C6 and H2 boards have native Thread support. You can turn one into a Thread border router for your Home Assistant setup with just a USB-C cable and an optional antenna.
The project uses OpenThread Radio Co-Processor firmware, which you flash using the ESPHome firmware flasher. Connect the board to your Home Assistant server via USB, set it up through the Open Thread Border Router app, and you're done.
Why does this matter? Thread is the transport layer for Matter accessories. IKEA's new smart home lineup uses Matter over Thread. Commercial Thread border routers cost $30-50 or more. This DIY version costs $5 for the board plus whatever you have lying around.
Another weekend Raspberry Pi project walkthrough
Hardware options for mesh projects
The guide highlights two boards worth knowing about.

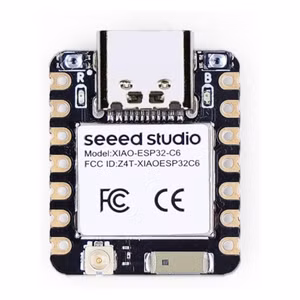

The Seeed Studio XIAO ESP32-C6 runs $5 direct from Seeed or $12 on Amazon. It packs Zigbee, Thread, Matter support, and Wi-Fi 6 into a tiny form factor. If you're building smart home sensors or switches, this is the board to grab.

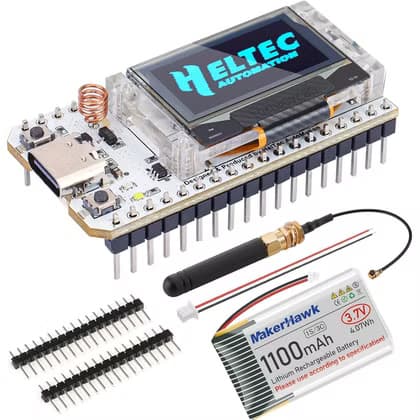

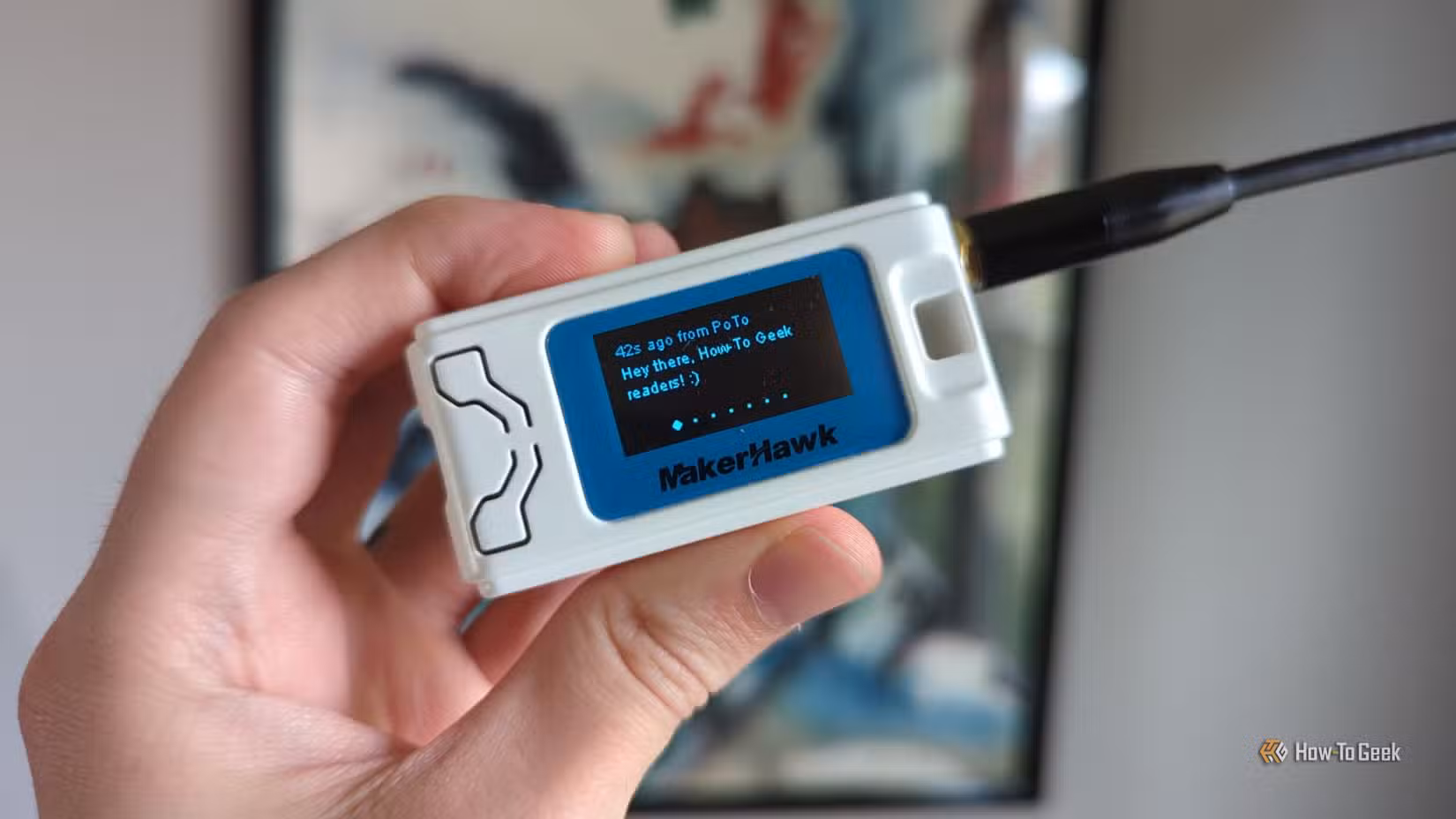

For LoRa projects like Meshtastic, the MakerHawk Heltec V3 LoRa board at $27 includes an LED display, 1100mAh battery, and multiple antennas. It's a complete kit for joining your local Meshtastic network or building other long-range communication projects.
Other project ideas from the roundup
Beyond the Thread border router, the guide mentions DIY Zigbee sensors and switches, long-distance LoRa communication setups, and low-latency data transfer projects. The ESP32's versatility means you can pick the protocol that fits your use case.

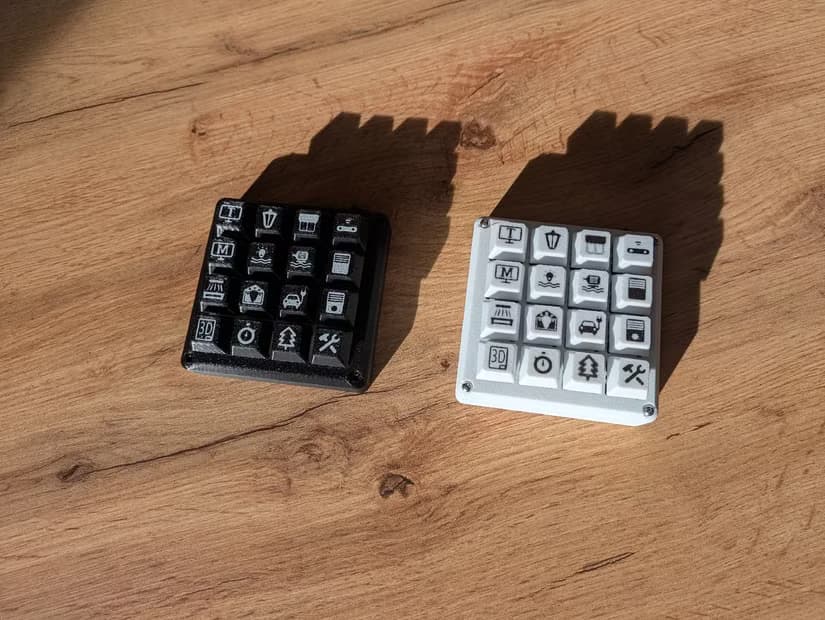

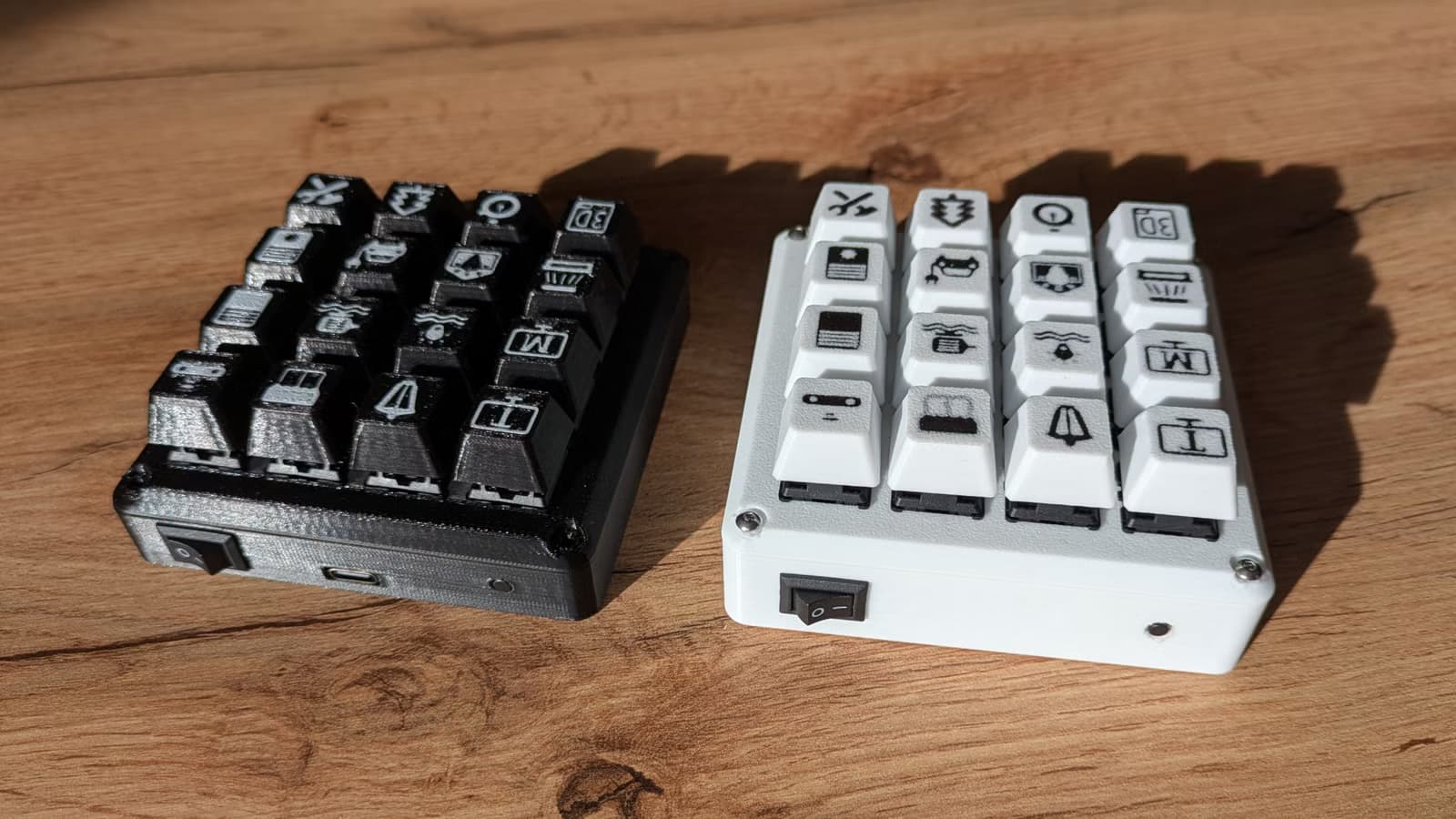

One community project worth noting is a DIY Zigbee macropad remote. User starky_fr shared the second version on Reddit, showing how ESP32 boards can become custom input devices that integrate directly with your smart home.
Practical advice for home server setups
Getting started
For the Thread border router project, Home Assistant Community user parhelion published a step-by-step guide. You'll need an ESP32-C6 or H2 variant, a USB-C cable, and optionally an external antenna for better range.
The ESPHome firmware flasher handles the OpenThread Radio Co-Processor firmware installation. From there, it's plug-and-play with Home Assistant's Open Thread Border Router app.
Logicity's Take
Frequently Asked Questions
What mesh protocols do ESP32 boards support?
ESP32 variants support different protocols. The ESP32-C6 and H2 include Thread, Zigbee, and Matter support alongside Wi-Fi. Other ESP32 boards work with LoRa for long-range mesh networks like Meshtastic.
How much does an ESP32 Thread border router cost to build?
The board itself costs $5-12 depending on where you buy it. Add a USB-C cable you probably already have and an optional antenna. Total cost is under $15, compared to $30-50 for commercial Thread border routers.
Can I use ESP32 for Meshtastic?
Yes. Boards like the Heltec V3 LoRa at $27 come with everything needed, including a display, battery, and antennas. They work out of the box with Meshtastic networks.
What's the difference between Thread and Zigbee?
Both are low-power mesh protocols for smart home devices. Thread is the transport layer for Matter, Apple's and Google's preferred smart home standard. Zigbee is older and used by many existing devices, including some IKEA products.
